DTC    B0101/14    Open in Driver Side Squib Circuit

for Preparation Click here


DESCRIPTION

The driver side squib circuit consists of the center airbag sensor assembly, the spiral cable and the steering pad.
The circuit instructs the SRS to deploy when deployment conditions are met.
DTC B0101/14 is recorded when an open circuit is detected in the driver side squib circuit.

DTC No.
DTC Detecting Condition
Trouble Area
B0101/14
  1. Open circuit in D+ wire harness or D- wire harness of driver side squib
  2. Driver side squib malfunction
  3. Spiral cable malfunction
  4. Center airbag sensor assembly malfunction
  1. Steering pad (Driver side squib)
  2. Spiral cable
  3. Center airbag sensor assembly
  4. Instrument panel wire

WIRING DIAGRAM

Click here.

INSPECTION PROCEDURE

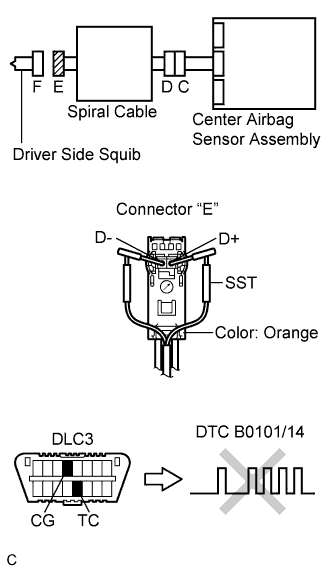

1.CHECK STEERING PAD (DRIVER SIDE SQUIB)


    C110390E01

  1. Turn the ignition switch to the LOCK position.

  1. Disconnect the negative (-) terminal cable from the battery, and wait for at least 90 seconds.

  1. Disconnect the connectors from the steering pad.

  1. Connect the white wire side of SST (resistance 2.1 Ω) to the spiral cable.

    CAUTION:
    Never connect a tester to the steering pad (Driver side squib) for measurement, as this may lead to a serious injury due to airbag deployment.

    NOTICE:
    Do not forcibly insert the SST into the terminals of the connector when connecting.
    Insert the SST straight into the terminals of the connector.

SST
09843-18060

  1. Connect the negative (-) terminal cable to the battery, and wait for at least 2 seconds.

  1. Turn the ignition switch to the ON position, and wait for at least 60 seconds.

  1. Clear the DTCs stored in memory (Click here).

  1. Turn the ignition switch to the LOCK position.

  1. Turn the ignition switch to the ON position, and wait for at least 60 seconds.

  1. Check the DTCs (Click here).

    OK:
    DTC B0101/14 is not output.

    HINT:
    Codes other than DTC B0101/14 may be output at this time, but they are not related to this check.



NG
Go to step 2
OK

REPLACE STEERING PAD

2.CHECK CONNECTORS

  1. Turn the ignition switch to the LOCK position.

  1. Disconnect the negative (-) terminal cable from the battery, and wait for at least 90 seconds.

  1. Disconnect the SST (resistance 2.1 Ω) from the spiral cable.

  1. Check that the spiral cable connectors (on the steering pad side) are not damaged.

    OK:
    The lock button is not disengaged, and the claw of the lock is not deformed or damaged.



NG
REPLACE SPIRAL CABLE
OK

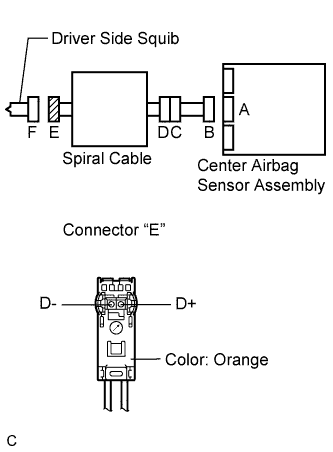

3.CHECK DRIVER SIDE SQUIB CIRCUIT


    C110386E02

  1. Disconnect the connector from the center airbag sensor assembly.

  1. Measure the resistance according to the value(s) in the table below.

    Resistance:
    Tester connection
    		Condition
    		Specified condition
    D+ - D-
    		Always
    		Below 1 Ω



NG
Go to step 5
OK

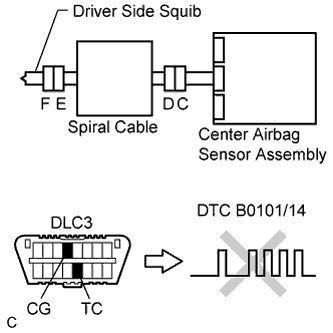

4.CHECK CENTER AIRBAG SENSOR ASSEMBLY


    C110391E01

  1. Connect the connectors to the steering pad and the center airbag sensor assembly.

  1. Connect the negative (-) terminal cable to the battery, and wait for at least 2 seconds.

  1. Turn the ignition switch to the ON position, and wait for at least 60 seconds.

  1. Clear the DTCs stored in memory (Click here).

  1. Turn the ignition switch to the LOCK position.

  1. Turn the ignition switch to the ON position, and wait for at least 60 seconds.

  1. Check the DTCs (Click here).

    OK:
    DTC B0101/14 is not output.

    HINT:
    Codes other than code B0101/14 may be output at this time, but they are not related to this check.



NG
REPLACE CENTER AIRBAG SENSOR ASSEMBLY
OK

USE SIMULATION METHOD TO CHECK

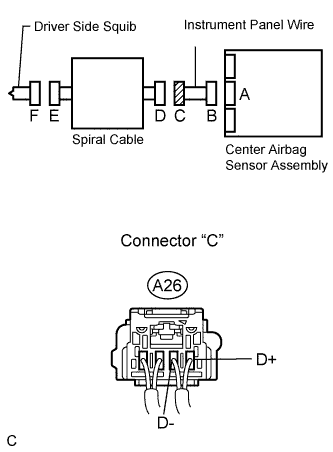

5.CHECK INSTRUMENT PANEL WIRE


    C110388E07

  1. Disconnect the instrument panel wire connector from the spiral cable.

  1. Measure the resistance according to the value(s) in the table below.

    Resistance:
    Tester connection
    		Condition
    		Specified condition
    A26-1 (D+) - A26-2 (D-)
    		Always
    		Below 1 Ω



NG
REPAIR OR REPLACE INSTRUMENT PANEL WIRE
OK

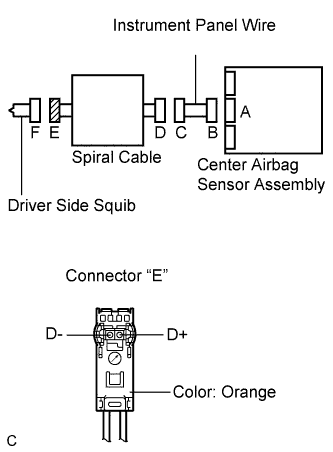

6.CHECK SPIRAL CABLE


    C110389E01

  1. Measure the resistance according to the value(s) in the table below.

    Resistance:
    Tester connection
    		Condition
    		Specified condition
    D+ - D-
    		Always
    		Below 1 Ω



NG
REPLACE SPIRAL CABLE
OK

USE SIMULATION METHOD TO CHECK
