DTC    P2120-111    Throttle / Pedal Position Sensor / Switch "D" Circuit

DTC    P2121-106    Throttle / Pedal Position Sensor / Switch "D" Circuit Range / Performance

DTC    P2121-114    Throttle / Pedal Position Sensor / Switch "D" Circuit Range / Performance

DTC    P2125-112    Throttle / Pedal Position Sensor / Switch "E" Circuit

DTC    P2126-109    Throttle / Pedal Position Sensor / Switch "E" Circuit Range / Performance

DTC    P2138-110    Throttle / Pedal Position Sensor / Switch "D" / "E" Voltage Correlation

for Preparation Click here


DESCRIPTION

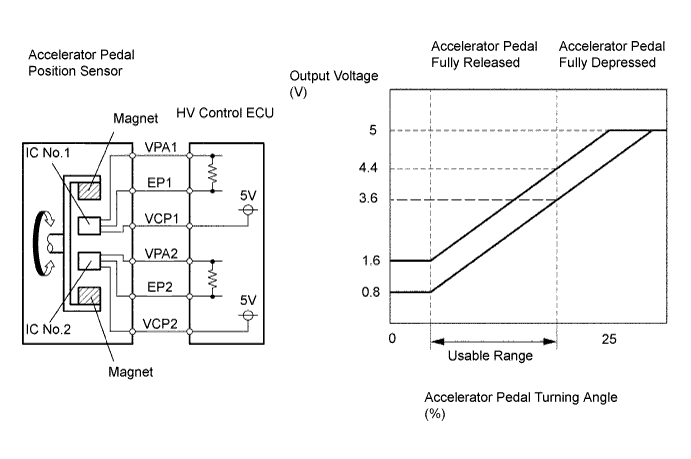

The accelerator pedal position sensor is mounted on the accelerator pedal to detect how much the pedal is depressed. This is a non-contact sensor with hall elements. It has 2 sensors per sensor unit. One is used to detect the accelerator pedal position and the other to detect a malfunction in the sensor itself. In the accelerator pedal position sensor, the voltage applied to terminals VPA1 and VPA2 of the HV control ECU varies between 0 and 5 V in accordance with the accelerator pedal position. Terminal VPA2 is used to detect a malfunction in the sensor itself. The HV control ECU determines the current accelerator pedal position and controls the hybrid control system based on signals received from terminals VPA1 and VPA2.

A087658E01


DTCNo.
INF Code
DTC Detection Condition
Trouble Area
P2120
111
Main sensor value does not change while sub sensor value changes
  1. Accelerator pedal rod assembly
P2121
106
Internal error of main sensor
  1. Accelerator pedal rod assembly
P2121
114
Accelerator pedal does not smoothly return to its original position
  1. Accelerator pedal rod assembly
P2125
112
Sub sensor value does not change while main sensor value changes
  1. Accelerator pedal rod assembly
P2126
109
Internal error of sub sensor
  1. Accelerator pedal rod assembly
P2138
110
Difference between main sensor value and sub sensor value is large
  1. Accelerator pedal rod assembly

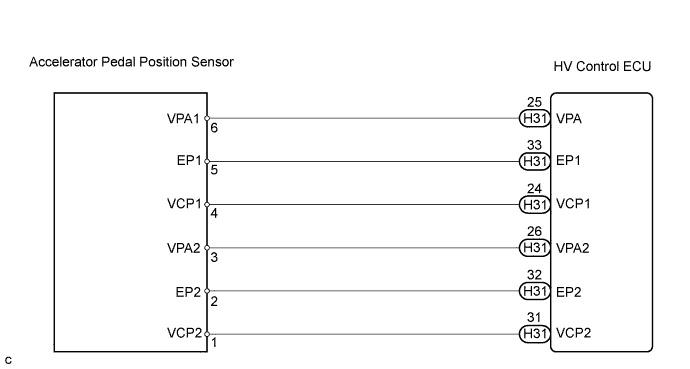

WIRING DIAGRAM


A113963E02


INSPECTION PROCEDURE

1.REPLACE ACCELERATOR PEDAL ROD ASSEMBLY

NEXT

COMPLETED
