FRONT AIRBAG SENSOR > INSTALLATION

for Preparation Click here

HINT:

1. Use the same procedure for the RH side and LH side.

2. The procedure listed below is for the LH side.


1. Check that the power switch is off.


2. Check that the cable is disconnected from the negative (-) battery terminal.


   CAUTION:

   Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

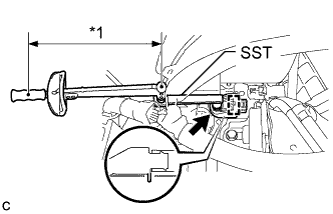

3. Using SST and a torque wrench, install the front airbag sensor with the bolt.


   Text in Illustration

   *1	Fulcrum Length

   SST

   09961-00950


   Torque:

   without SST:

   9.0 N*m{ 92 kgf*cm , 80 in.*lbf }

   with SST:

   5.6 N*m{ 57 kgf*cm , 50 in.*lbf }

   NOTICE:

   1. Use a torque wrench with a fulcrum length of 250 mm (9.84 in.).

   2. This torque value is effective when SST is parallel to the torque wrench.

   3. If the front airbag sensor has been dropped, or there are any cracks, dents or other defects in the case or connector, replace it with a new one.

   4. When installing the front airbag sensor, be careful that the SRS wiring does not interfere with or is not pinched between other parts.

   5. Make sure that the pin (stopper) is securely inserted into the body hole.

   6. Tighten the bolt while holding the front airbag sensor because the front airbag sensor pin (stopper) is easily damaged.


4. Connect the connector to the front airbag sensor.


   NOTICE:

   When connecting any airbag connector, take care not to damage the airbag wire harness.

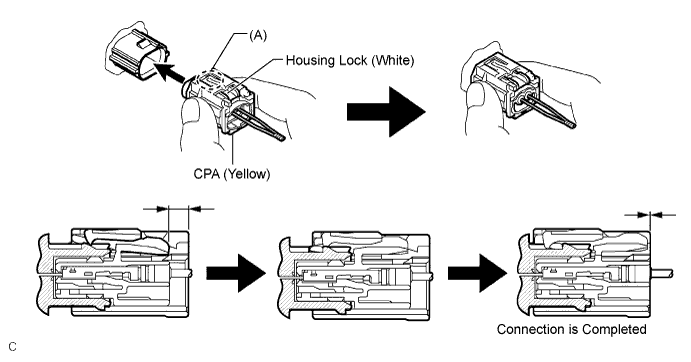

   1. Before connecting the connector, check that the position of the white housing lock is correct as shown in the illustration.












   2. Be sure to engage the connectors until they are locked (when locking, make sure that a click sound can be heard).








      HINT:

      When engaged, the white housing lock will slide. Be sure not to hold the white housing lock and part (A), as it may result in an insecure fit.

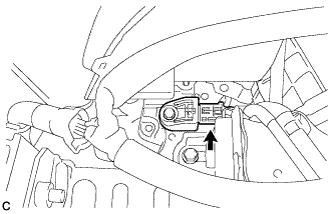

5. Check that there is no looseness in the installation parts of the front airbag sensor.


NOTICE:

When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Click here).

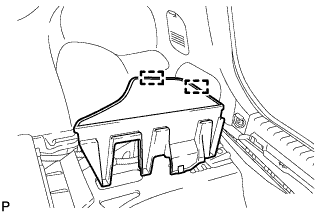

1. Engage the 2 guides to install the rear No. 3 floor board.


1. Install the rear deck floor box.

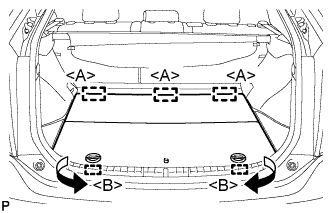

1. Engage the 3 guides <A>.


2. Engage the 2 guides <B> and install the rear No. 2 floor board as shown in the illustration.


HINT:

Refer to the procedure from Install Front Bumper Assembly (Click here).

1. Perform a diagnostic system check (Click here).


1. Inspect the SRS warning light (Click here).
